Edit Configurable Fieldsets

A configurable fieldset is a group of fields in certain Procore tools that can be set to optional, required, or hidden, depending on the needs of your company. This allows for better control over data entry when users create and edit items in Procore projects. See What are configurable fieldsets and which Procore tools support them?

• Required User Permissions

• Additional Information:

  • By default, configurable fieldsets are only applied to new projects. However, you can select which existing projects to apply them to.

  • Configurable fieldsets applied to projects will be reflected on both Procore's web and mobile applications.

  • Changing a field's requirements ('Required' or 'Optional') will impact creating new items or updating existing items on projects that the configurable fieldset was applied to.

  • When custom fields are added to or removed from a configurable fieldset that is applied to one or more projects, the custom fields will be added to or removed from all of the fieldset's existing and new items within the projects.

1. Navigate to the Company level Admin tool.

2. Under 'Tool Settings', click the tool you want to edit configurable fieldsets for.

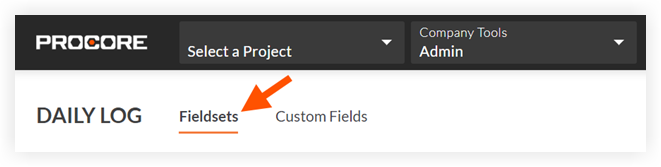

3. Click the Fieldsets tab.
   Tools without other settings in the Company level Admin tool will open to this page automatically.

4. Optional: If you want to rename a fieldset:

   1. Click into the Title field and edit the name.

   2. Press ESC on your keyboard.

5. Click Edit next to the fieldset you want to modify.

6. On the 'Edit Fieldset' page, each field name has the following options:

   • Click the toggle to the ON position to make the field visible in the section.

   • Click the toggle to the OFF position to hide the field in the section.
     icon indicates that the field is visible by default and cannot be changed to hidden.

   • Mark the 'Required' checkbox to designate the field as required.
     OR
     Clear the 'Required' checkbox to designate the field as optional.
     Notes:

     • Fields without a checkbox are optional by default and cannot be changed to required.

     • A gray marked checkboxindicates that the field is required by default and cannot be changed to optional.

7. Optional: Click Create Section to create a new section.
   Note: This is only available for some tools.

   • Enter the section name, then click Create.

8. Optional: Click Add Custom Field in the relevant section.

   • Create New

     • Click Create New.

     • Enter the Field Name.

     • Enter the Field Type.

     • Click Create.

   • Choose Existing

     • Click Choose from Existing.

     • Click Add next to the custom field.
       Note: Not all custom field types are available for all tools. See What field types are available for Custom Fields in Procore Tools?

9. Click Save.

10. In the 'Apply changes to [#] project(s)?' window:

• Click Apply to Existing to save your changes to the fieldset on projects that the fieldset is already applied to.
  OR

• Click Assign Projects to add or remove the fieldset from projects.

  • In the 'Assign Projects' window, mark the checkbox next to each project you want to apply the fieldset to and click Update.

  • In the 'Apply changes to [#] project(s)?' window, click Confirm.
