Get Precise Spot Coordinates (X, Y, Z) with the Coordinates Tool

Procore Model Manager - Beta Access & Feedback

The Model Manager (Beta) tool is exclusively available to registered beta participants. It is not available through Procore Explore. To learn more, see Beta Participant Guide.

  • To access the beta and provide feedback Show/Hide Details

    • To register: Participating companies must sign the Procore Beta Agreement. Once signed, your Procore Administrator coordinates with your Procore point of contact to enable Model Manager (Beta) on specific Procore projects.

    • To Provide Feedback During Beta: Contact your dedicated Beta program lead.

    • To report issues: Report breaking changes to Procore Customer Support. For general feedback or non-critical issues, contact your Beta program lead or Procore point of contact.

  • Notice: Procore Beta Services & Documentation Show/Hide Details

    For information about Beta Services, see the Procore Subscription Services Agreement. This documentation supports a product currently in Beta; content is actively being developed for General Availability (GA) and may be incomplete.

    • As-Is Basis: Provided solely for evaluation purposes on an "as is" basis.

    • No Warranties: Standard contractual commitments do not apply. This information carries no formal product commitments, and Procore assumes no liability for harm arising from its use.

    • Subject to Change: Procore may change, discontinue, or choose not to generally release these Beta Services at any time without notice.

Currently, only Admin permissions are available. 'Read-Only' and 'Standard' permission levels are coming soon.

Use the Coordinates tool to help identify the exact spatial location of elements within a 3D model. By placing coordinate labels on various lines, edges, or surfaces, you can ensure high levels of accuracy for layout and installation tasks.

Things to Consider

Prerequisites

Steps

  1. Launch the Procore Mobile app on your device.

  2. Go to the desired Procore project.

  3. Tap the Model Manager tool.

  4. Open a model or project view.

  5. Click Measurements .

  6. Click Coordinates to activate the mode. This image shows the initial state of the Coordinates tool in the Next Gen Viewer of the Model Manager tool.

    Tip: Managing Your Changes

    Need to save your progress or exit without saving? To learn how, see How can I tell which tool is active in the Model Manager's right toolbar?

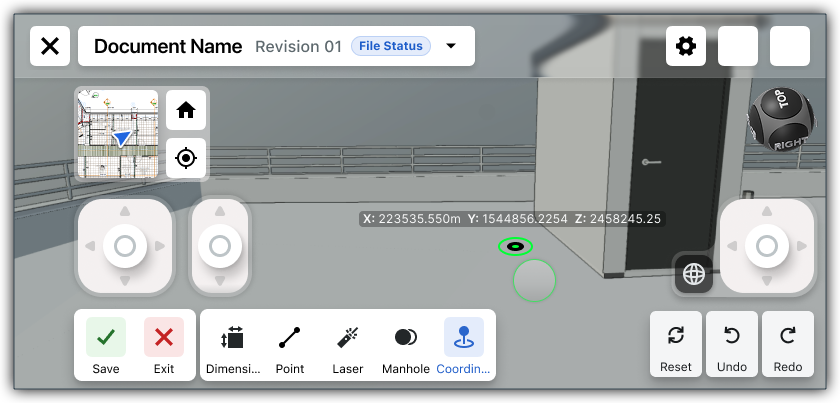

  7. Tap any line, edge, or surface in the 3D model and drag to create a new coordinate. This image shows how to drag the cursor to create a new coordinate with the Coordinates tool in the Next Gen Viewer of the Model Manager tool.

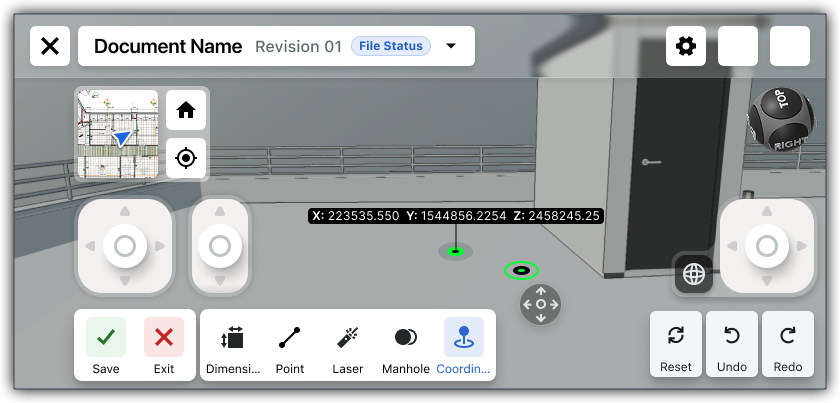

  8. Lift your finger to create the coordinate. This image shows a newly place coordinate in the Next Gen Viewer of the Model Manager. It was created with the Coordinates tool.

  9. Optional. Additional options:

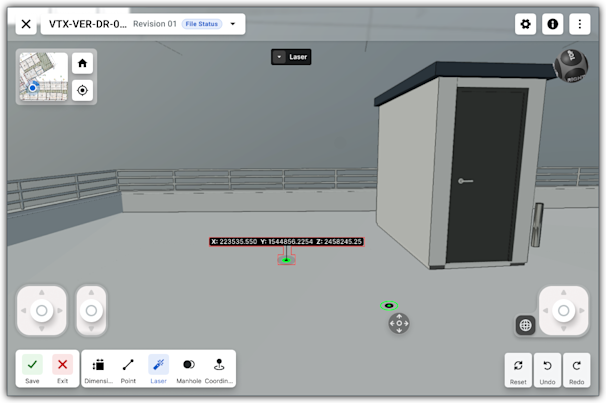

    • Move coordinates. Tap, hold, and drag to a different spot. This image shows a coordinate being moved with the Coordinates tool in the Next Gen Viewer of the Model Manager

    • Remove coordinates. Hover over the coordinates label and tap This image shows the Exit Mode icon in the Right Toolbar of the Viewer in the Model Manager tool. next to the coordinate.

  10. When finished, tap This shows the Save and Exit button in the right toolbar in the viewer in the Model Manager tool Save.
