The Model Manager (Beta) features and documentation are subject to change without notice. (Note: At the launch of the Beta, only 'Admin' level permissions are available. Additional permissions will be phased in during the product lifecycle).

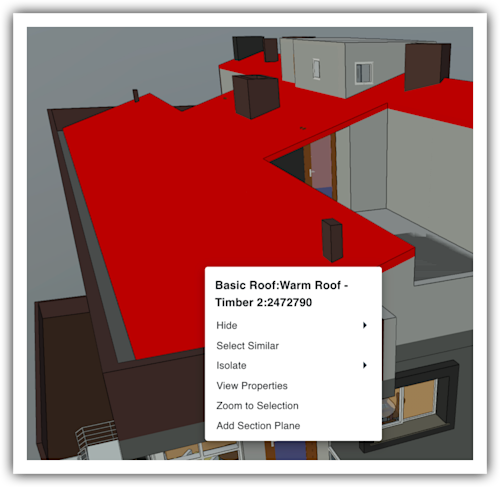

The Actions menu provides a centralized way to control how you view and interact with 3D model data. By using these tools, you can quickly declutter your view, find similar items across the entire project, and inspect complex internal details without losing the overall context of the model.
Required User Permissions (Note: At the launch of the Beta, only 'Admin' level permissions are available. Additional permissions will be phased in during the product lifecycle).
Follow these guidelines when using the Actions menu.
Choose | Behavior |
|---|---|
Hide > Hide Object | Hides only the selected object from the current view. |
Hide > Hide Similar | Hides all objects in the model that share the same properties as the selected object. |
Select Similar | Selects every object in the model that matches the attributes of your current selection. |
Isolate | Hides all other objects in the model so only your selection remains visible. |
Isolate in X-Ray Mode | Keeps your selection in focus while turning all other objects transparent to provide visual context. |
Zoom to Selection | Adjusts the camera view to focus on the currently selected objects. |
Add Section Plane | Creates a cross-section view at the selected object's location to help you inspect internal model details. |
