The Model Manager (Beta) tool is exclusively available to registered beta participants. It is not available through Procore Explore. To learn more, see Beta Participant Guide.
Procore is finalizing functionality and documentation for general availability in the UK and Ireland (UKI). Please check back here for updates.
Links connect items from Procore tools to objects in a 3D model, so anyone navigating the model can review an item's details from the object. To learn how links differ from pins and which tools support each, see About Connected BIM.
Additional Information:
You can link one item to multiple objects by selecting them with Select Similar or View Properties. For example, link a single chair submittal to multiple seats.
You can link multiple items from the same tool to one object, but you must link each item in a separate action. For example, link electrical, mechanical, and fire/safety inspections to one Air Handling Unit.
Create the items you want to link in one of the supported Procore tools. You must have sufficient permissions to create the items in the tool.
Follow these steps to add object links to items from supported Procore tools to your model.
Navigate to the Model Manager (Beta) tool.
View a model.
Select one or multiple objects in the 3D model:

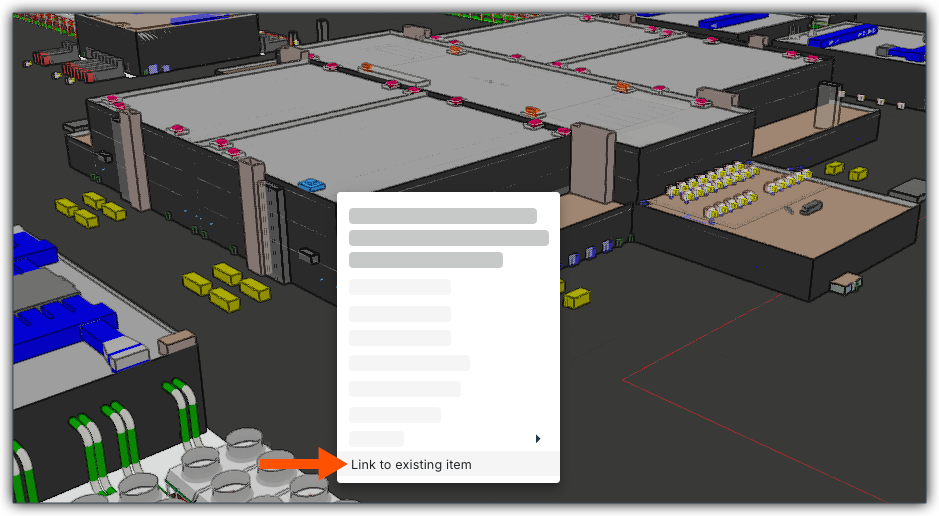

To select one object, right-click it and choose Link to Existing Item from the menu.

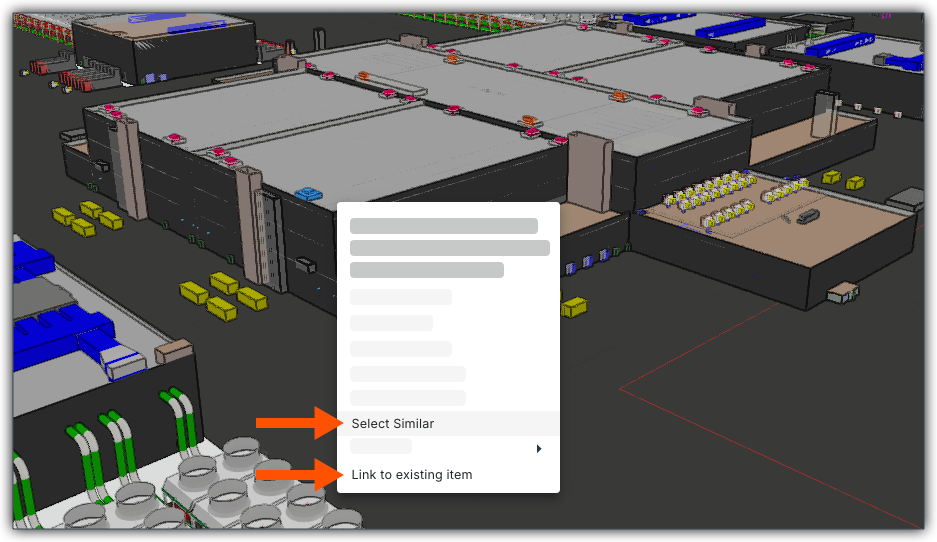

To select multiple identical objects, right-click one object and choose Select Similar to highlight all identical items in the model. Then, right-click again and choose Link to Existing Item from the menu.

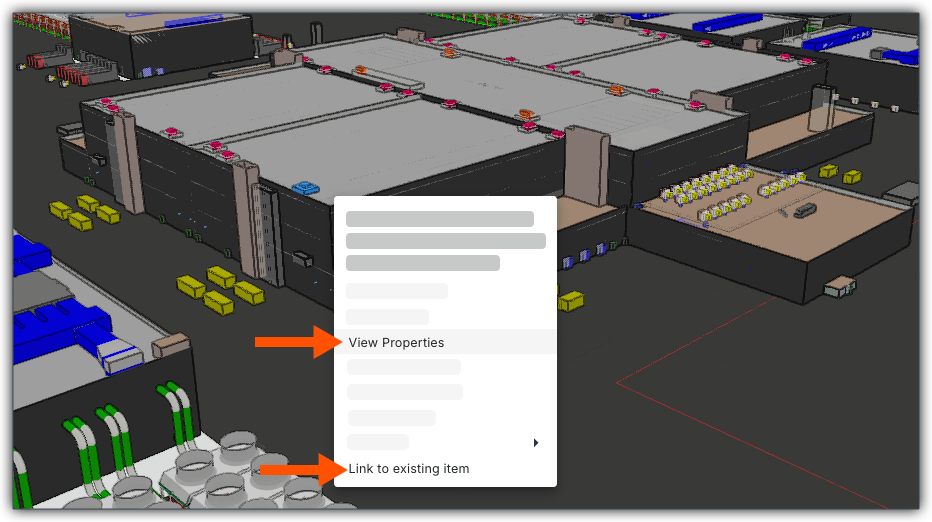

To select multiple objects by a shared property, click View Properties in the left toolbar, filter by the property value you want to match (for example, an object name), then right-click one of the highlighted objects and choose Link to Existing Item from the menu.
In the Link Items window, select a supported Procore tool in the left pane. A list of corresponding records appear.
Select the specific inspection record to attach. You can only select one (1) record at a time.
Click Next.
In the Details window, enter any optional notes about the model objects you selected as the item link.
When finished, click Link.
A confirmation message appears to confirm the system created the relationship.
Want to unlink an item? If you need to unlink an item at a later time, click Properties in the left toolbar and follow the steps in Unlink Connected BIM Items from a 3D Model.
